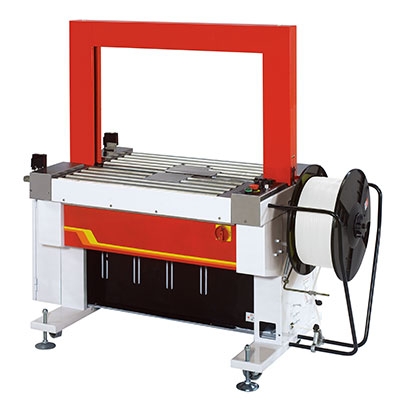

ROLLER DRIVEN TABLE
Tauris Transit Main Features
Simple and Reliable, Designed for General Purpose Applications
Reliable and Robust Strapping Head Robust mechanism design and high engineering standard ensure excellent durability of the products. Use two proximity switches to replace conventional limit switches. TP-601A Roller Driven Table Auto Strap Feeding Simply insert the strap into the feeding rollers from the coil side of the machine and then push the “reset” button.
The machine will automatically feed the strap without the need to access to the inside of the machine. No need to remove it from the line for strap feeding. Easy strap loading. TP-601 B Belt Driven Table Auto Strap Ejector Loop-eject clears unwanted strap automatically if the machine is accidentally activated without a package.
Eliminates downtime. Tauris Transit strapping machines are the simplest and most reliable strapping machines for general purpose applications on the market today.
Main Features

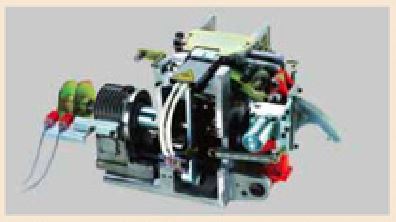

Reliable and Robust Strapping Head
Robust mechanism design and high engineering standard ensure excellent durability of the products. Use two proximity switches to replace conventional limit switches.

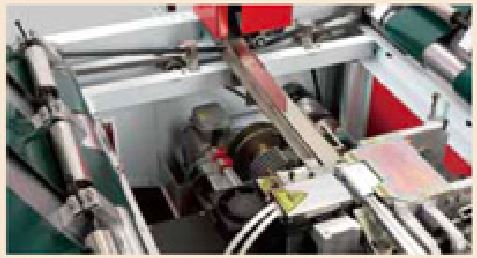

Auto Strap Feeding
Simply insert the strap into the feeding rollers from the coil side of the machine and then push the “reset” button. The machine will automatically feed the strap without the need to access to the inside of the machine. No need to remove it from the line for strap feeding. Easy strap loading.

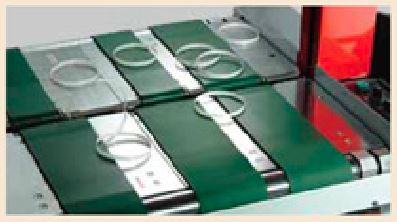

Auto Strap Ejector
Loop-eject clears unwanted strap automatically if the machine is accidentally activated without a package. Eliminates downtime.

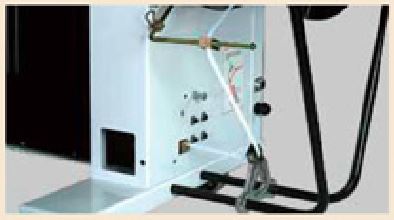

Electronic Tension Control
External adjustment of strap tension by the simple turn of a dial. Easy operation.
Belt Transmission
Instead of using roller chain, belt transmission system ensures long operational life and quiet operation.

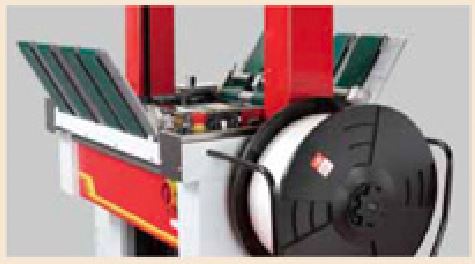

Hinged Top Plates
Opens wide for quick cleaning, inspection, and maintenance of strapping head, strap-feed and tensioning unit.
Options
• Siemens PLC control
•Variable conveyor speed: from 18 meter/minute to 42 meter/minute
• Safety guards
• Foot pedal switch
Stainless steel frame SUS 304 (TP-601AS, TP-601BS)
More Features
Conveyor Speed
30 meter/minute
Multiple Strap Function
For single, double, continuous strapping or transit mode
Up and Down Stream Interlock
With complete plug connection
Easy Bundle Flow Direction Change
The bundle flow direction could be reversed easily to meet different production line requirement
Strap End Ejector
Automatic end-strap detection and ejection. Get the machine ready for next coil of strap

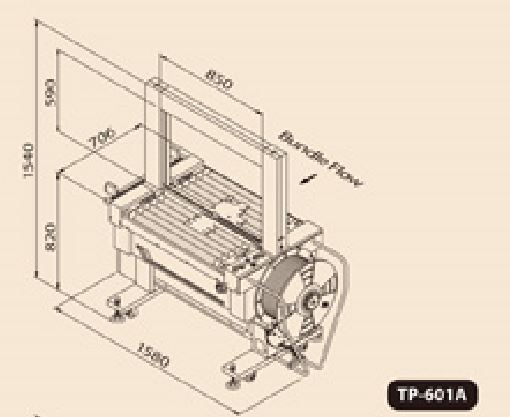

Arch Sizes
H/W |
850 |
1050 |
1250 |
|---|---|---|---|
|
400
|
|
|
|
|
600
|
S
|
|
|
|
800
|
|
|
|
|
1000
|
|
|
|
S: Standard size – 850mm (W) X 600mm (H)
Technical Description
Strap Width: 8 mm-12 mm
Strap Thickness: 0.55 mm-0.75 mm
Strap Tension: 7-70 kg
Speed: Upto 18 packages per minute (60 Hz)
(Cycle speed up to 29 straps per minute)
Table Height: 820 mm
Net Weight: 330 kg
Electrical Requirements: 220 V, 380 V, 400 V, 50/600 Hz, 3 PH
