Simple and Reliable, Designed for General Purpose Applications TP-601 BP
Tauris Transit TP-601BP is a fully automatic strapping machine with compression press for production and packaging lines. It is the simplest and most reliable strapping machine for general purpose applications on the market today.
With Pneumatic Press TP-601BP is ideal to strap compressible material such as corrugated papers, paper sheets, plastic sheets, bags…etc. More features refer to TP-601A / TP-601B
Options Stainless steel frame SUS 304 (TP-601BPS) Other options please refer to TP-601A/TP-601B

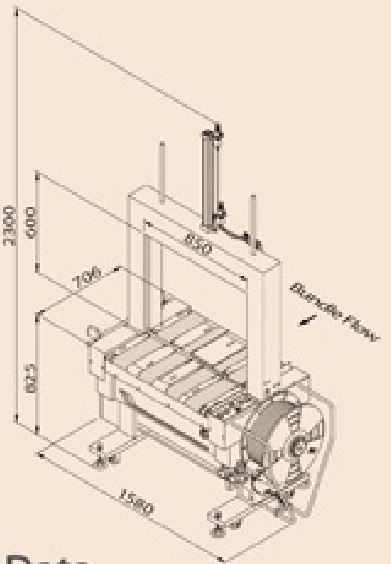

Arch Sizes
H/W |
850 |
1050 |
1250 |
|---|---|---|---|
|
400
|
|
|
|
|
600
|
S
|
|
|
|
800
|
|
|
|
|
1000
|
|
|
|
S: Standard size – 850mm (W) X 600mm (H)
TECHNICAL DATA
Strap Width: 8 mm-12 mm
Strap Thickness: 0.55 mm-0.75 mm
Strap Tension: 7-70 kg
Speed: Upto 18 packages per minute (60 Hz)
(Cycle speed up to 29 straps per minute)
Table Height: 825 mm
Net Weight: 347 kg
Pneumatic Source: 6 bar
Air Consumption: 10 liter/cycle
Electrical Requirements: 220 V, 380 V, 400 V, 50/600 Hz, 3 PH
