More Features
Short Feed Sensor
The sensor will detect whether the strap is at sealing position. If not, the start switch can not be activated.
Auto Strap Refeed
The machine will automatically refeed the strap if a mis-feed occurs.
Strap End Ejector
Eject end of strap. Get the machine ready for next coil of strap.
Methods of Cycle Initiation
The machine can be operated by several methods, such as foot pedal switch, start switch, and photo eye switch.
Option
• Stainless steel frame SUS 304 (TP-601DS)

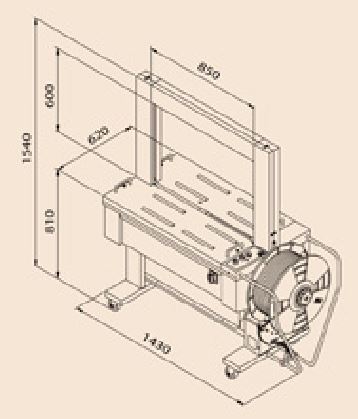

Arch Sizes
H/W |
650 |
850 |
1050 |
1250 |
|---|---|---|---|---|
|
400
|
|
|
|
|
|
600
|
|
S
|
|
|
|
800
|
N/A
|
|
|
|
|
1000
|
N/A
|
|
|
|
|
1200
|
N/A
|
|
|
|
S: Standard size – 850mm (W) X 600mm (H)
N/A means Not available
Larger arches on request
TECHNICAL DATA
Strap Width: 8 mm-12 mm
Strap Thickness: 0.55 mm-0.75 mm
Strap Tension: 7-70 kg
Speed per minute (60Hz): 29 straps
Net Weight: 230 kg
Electrical Requirements: 110 V, 220 V, 230 V, 50/600 Hz, 1 PH
Main Features

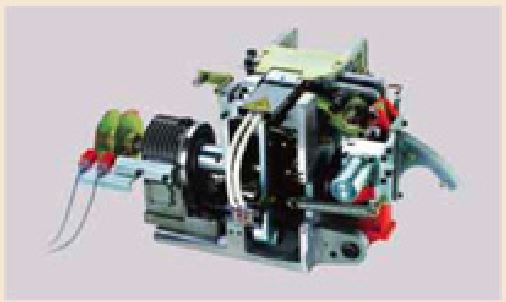

Reliable and Robust Strapping Head
Robust mechanism design and high engineering standard ensure excellent durability of the products. Use two proximity switches to replace conventional limit switches.
Electronic Tension Control
Strap tension can be adjusted accurately by the simple turn of a dial. Easy operation.

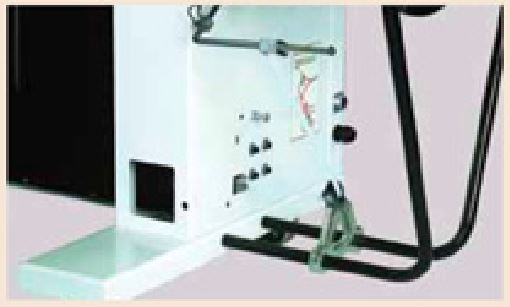

Auto Strap Feeding
Simply insert the strap into the feeding rollers from the coil side of the machine and then push the “reset” button. The machine will automatically feed the strap without the need to access to the inside of the machine. Easy strap loading.
Auto Strap Ejector
Loop-eject clears unwanted strap automatically if the machine is accidentally activated without a package. Eliminates downtime.
